“Red Zinger” – It lulls me to speed –
The bike sings to me. Actually, it zings... it’s a resonance with the pavement and drivetrain,
so we zing happily down the road. Carbon frames mute the song, but this one is alive with it.
It’s a siren’s song — the faster we go, the more it zings, and the faster I want to go.
Name taken from Mo Siegel’s iconic tea, and the classic bicycle races of the late 1970s.

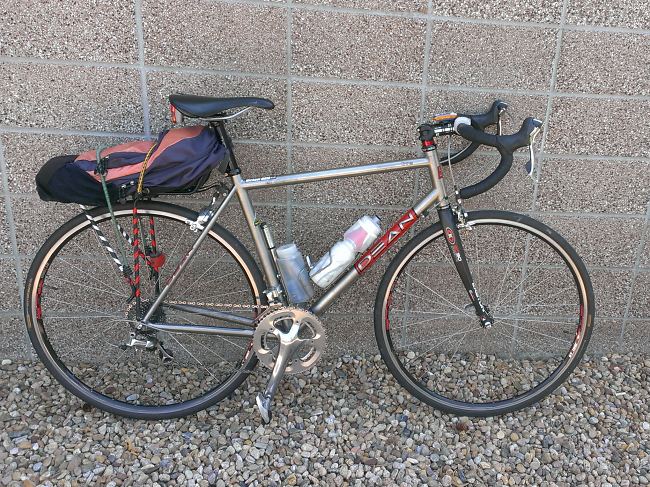

Aquired 2014.06.21 from Chad Corbin. Here it is all ready for our commute home from work.
Click for full size photo
And here we are on a recreational ride... 135 miles that day!
Click for full size photo

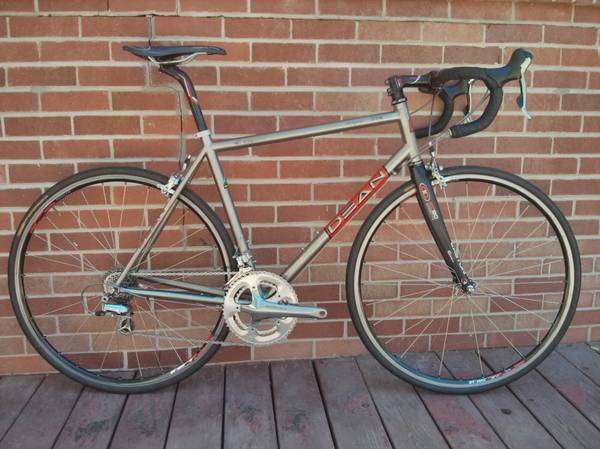

Here’s how it looked on Craigslist (I've changed the last four components since then):
Dean El Diente Super-Lite (Boulder)

Putting my race bike up for sale, because, well, I don't race any more.
Never crashed; I take good care of my bikes. Here are the details:


 • 56cm Dean El Diente Super-Lite 6/4 titanium frame
 • Easton EC90 carbon fork
 • Chris King headset
 • Dura-Ace groupo
 • DT Swiss 240s wheelset
 • FSA carbon seatpost
 • Deda handlebar
 • FSA stem
 • Selle San Marco Aspide saddle

DEAN Titanium Bicycle
El Diente Super-Lite Features
Super Light and Super Fast!   Tips the scales at about 2.4 lbs (~1.08 kg).
El Diente Super Lite is one of the lightest titanium road frames on the market.
Each and every frame is built to order so you get exactly what you want -
  that's right, custom specs. come stock!!!
Hand crafted from Reynolds seamless butted 6/4vr radial titanium -
  cold worked and stress relieved for extra stiffness and durability.
Proprietary custom gauged oversized and ultra light tubing throughout.
Features a 1-1/8" CNC machined butted headtube.
Super stout oversized and ultra light downtube deliver the perfect ride.
7/8" to 3/4" oversized and ovalized chainstays.
Ultra-Lite "Breezer" Style dropouts.
Extra durable 6/4 CNC machined cut dropouts and BB shell.

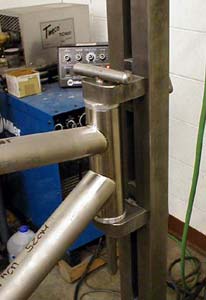

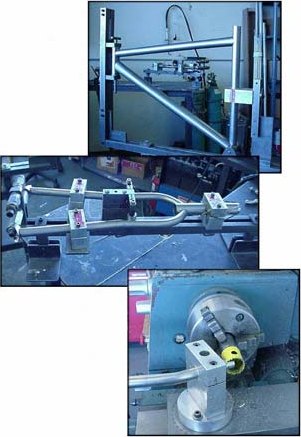

Hand crafted to perfection in our own factory - right here in Boulder, Colorado.
Reynolds 6/4 titanium 6/4 seamless, butted aerospace grade titanium througout!
6/4 titanium cable guides!
6/4 titanium bottom bracket shell!
6/4 titanium "Breezer" style dropouts!
Seatpost: 27.2 mm
Headset: 1-1/8"
Front Derailuer: 1-1/4" Clamp
Bottom Bracket: 68 x English Thread
Fork Dimensions Offset = 45.0 mm. / Axle to Crown = 365.0 mm

Titanum Specifications:
Consists of 6% aluminum, 4% vanadium and 90% pure titanium.
Exclusive to our titanium is the "R" grade processing -
  "R" for radically aligned crystals. Increases strength and durability.
All tubesets are cold-worked and stress relieved for increased stiffness and durability.
Minimum yield strength of 105 ksi and minimum ultimate tensile strength of 125 ksi.
Has an annealed elongation of 15-30% and a cold-worked ductility of 10%.
Has a fatigue strength-to-weight ratio roughly 3x that of 4130 chrome-moly steel.
Superior resiliency and corrosion resistance.
MultiRed
BlackBlue
CarbonYellow
GreyGreen

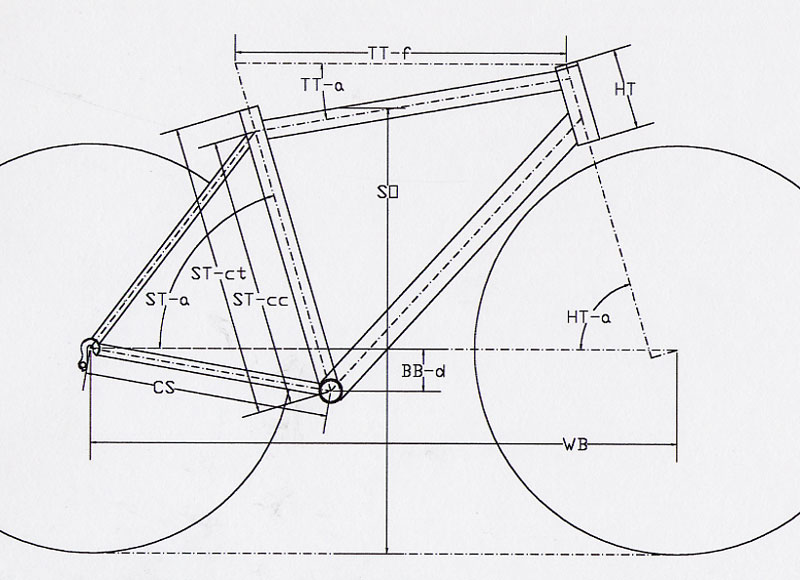

  Compact Geometry:
  SizeAbbreviation48cm 50cm52cm54cm56cm58cm60cm
  Seat Tube c/c (center of top tube) ST-cc430450450450450500500
  Seat Tube c/t (overall seat tube length) ST-ct470490490490490540540
  Top Tube (effective) TT-f520530545555565580595
  Top Tube Angle TT-a7.4º5.2º7.2º9.2º12.1º8.3º10.2º
  Head Tube HT100105118135155170190
  Head Tube Angle HT-a72º72.5º73º73º73º73.5º74º
  Seat Tube Angle ST-a74.5º74º74º73.5º73º73º72.5º
  Chain Stay CS407407407407410410410
  BB Drop BB-d68686868686868
  Wheel Base WB9659739849859949991008
  Height Range4'11 - 5'2"5'3" - 5'6" 5'5" - 5'8"5'8" - 5'10"5'10" - 6'0"6'0" - 6'2"6'2" - 6'4"
  © 2003 DEAN Ultimate Bicycles, 6560 Odell Place, Boulder, Colorado 80301.             http://www.deanbikes.com
Gearing in Gear Inches (thanks to Sheldon Brown)
Zinger
11-34T
 50     34
121.6 82.7
102.9 70.0
 89.2 60.7
 78.7 53.5
 70.4 47.9
 63.7 43.3
 58.2 39.6
 51.5 35.0
 44.6 30.3
 39.4 26.8
Jefe
11-28T
 50     34
119.5 81.2
109.5 74.5
101.1 68.7
 93.9 63.8
 87.6 59.6
 77.3 52.6
 69.2 47.0
 62.6 42.5
 54.8 37.2
 46.9 31.9
BB
12-26T
 50      39      30
109.5 85.4 65.7
101.1 78.8 60.6
 87.6 68.3 52.6
 77.3 60.3 46.4
 69.2 53.9 41.5
 62.6 48.8 37.5
 57.1 44.6 34.3
 50.5 39.4 30.3
Jenny
11-30T
 42       32      22
 98.3 74.9 51.5
 83.2 63.4 43.6
 72.1 54.9 37.8
 63.6 48.5 33.3
 54.1 41.2 28.3
 47.0 35.8 24.6
 41.6 31.7 21.8
 36.1 27.5 18.9

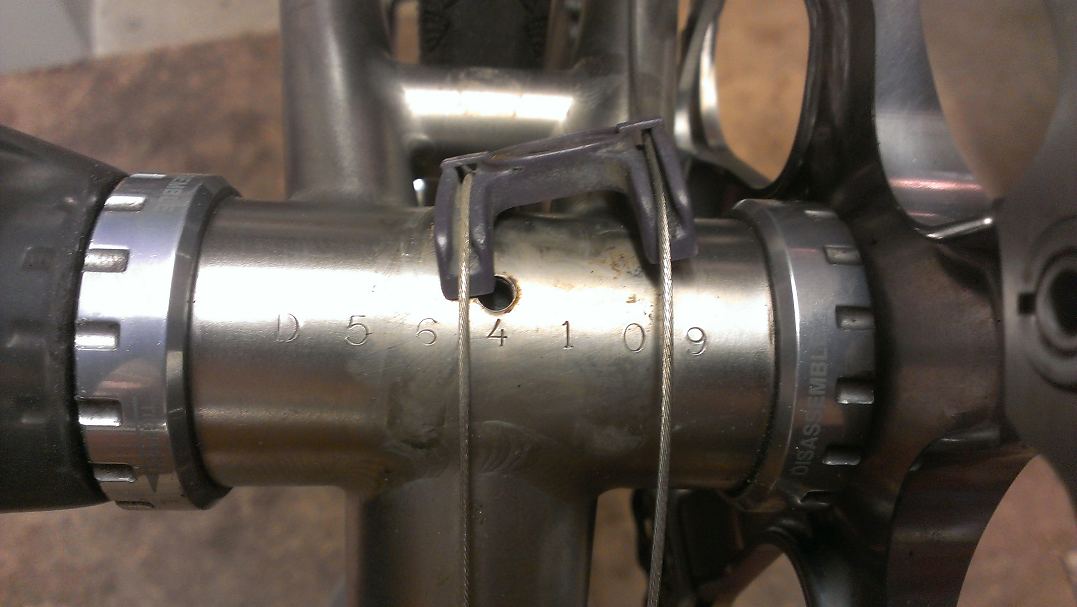

S/N D564109 Michael Moir
