El Jefe
 2009 Felt F1 SL Garmin Team Issue
model FEFM01-F1-SL-TEAM-56     s/n AK0900052
BikePedia
Bicycle TypeRoad race & triathlon
MSRP (frameset)$2599
Weightsub-900g
Size56cm
ColorGarmin-Slipstream
Frame & Fork
Frame ConstructionFelt UHC-Nano modular carbon fiber frame with 3KP finish. Forged dropouts & CNC machined replaceable hanger.
ForkFelt UHC Nano 1.1, 1 piece carbon fiber, 300g
HeadsetFSA 1 1/8" Integrated, with 10mm cone & 15mm spacers
Components
Component GroupShimano Ultegra 6700, 10 speed
BrakesetBR-6700 Dual-Pivot Brake Caliper
Brake/Shift LeversST-6700 Dual Control Lever
Front DerailleurFD-6700
Rear DerailleurRD-6700
CranksetFC-6750 Hollowtech II, 50/34T, 170mm, 110 BCD
PedalsPD-6700 SPD-SL, SM-SH11 (floating) cleats
Bottom BracketShimano Dura-Ace SM-BB7900 Hollowtech II
BB Shell Width68mm, English threaded 1.37 x 24 TPI
CassetteShimano Ultegra CS-6700, 11 - 28T
Chain   (104 links)Shimano Ultegra CN-6701, w/ KMC “MissingLink” CL559R
Seatpost3T Doric Pro, 27.2mm x 350mm
Seatpost Clamp30.6mm 7075-AL, titanium bolt & scandium nut-bar
SaddleFi'zi:k Aliante Delta, with Twin Flex technology.
7mm Mg. rails, 270g, 270mm x 137mm. Microtex cover.
Handlebar3T Ergonova Pro, 42cm width, 123mm drop, 31.8mm clamp
Stem3T ARX Team, +/-6°, 90mm, 1-1/8" steerer
Wheels
WheelsetHED Bastogne C2
HubsHED Sonic hubset, 15mm axle
RimsAlloy C2 clinchers: 23mm wide, 24mm deep
Weight1481g pair: 651g front, 830g rear
SpokesSapim bladed spokes, black stainless: 18 front, 24 rear
TiresContinental Grand Prix 4-Season, 700 x 25c, 330tpi, 240gr
TubesMichelin Airstop Butyl, 700 x 18-23c, 52mm stem, 98gr
Accessories
ComputerGarmin Edge 500, Team Garmin Bundle s/n 1TK057042
Bottle CagesArundel Dave-O, silver/carbon fiber, 30 grams
PumpLezyne Road Drive, black, size large: 283mm, 110g.
Previous Rider
Peter Salon Born in Slovakia2009 VMG/Felt U23 Team, USA Cycling rider results

Gearing in Gear Inches (thanks to Sheldon Brown)
New
11-28T
50    34
119.581.2
109.574.5
101.168.7
93.963.8
87.659.6
77.352.6
69.247.0
62.642.5
54.8 37.2
46.931.9
Original
12-25T
53    39
116.185.4
107.178.8
99.573.2
92.968.3
87.164.1
81.960.3
73.353.9
66.348.8
60.644.6
55.741.0
BB
12-26T
50     39     30
109.585.465.7
101.178.860.6
87.668.352.6
77.360.346.4
69.253.941.5
62.648.837.5
57.144.634.3
50.539.430.3
Jenny
11-30T
42    32    22
98.374.951.5
83.263.443.6
72.154.937.8
63.648.533.3
54.141.228.3
47.035.824.6
41.631.721.8
36.127.518.9

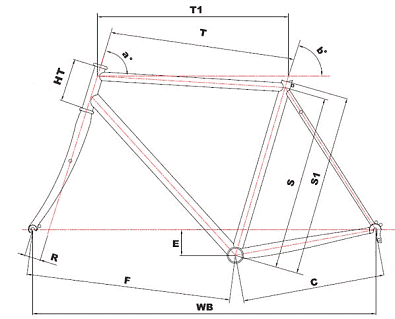

Felt Jefe SL Geometry
Frame Size56 cm
Head Angle73.5°
Seat Angle73.5°
Top Tube Horizontal560
Top Tube C-C555
Head Tube140
Seat Tube C-T560
Seat Tube C-C522
Bottom Bracket Drop70
Chainstay410
Front Center588
Wheelbase988
Rake43
Standover792
Bicycle geometry
